P.J. Guerin Ltd is a family owned and run mechanical engineering business, established in 1974. Industrial and commercial boiler and heat exchanger sales and repair, a full boiler house package, plus stainless and mild steel fabrication from a 6000 sq ft workshop on the outskirts of Cork city.
P.J. Guerin Ltd was established in 1974 and is a family owned and run mechanical engineering business.
We operate from a fully equipped, modern 6000 sq ft engineering workshop on the outskirts of Cork city. The company specialises in all types of industrial and commercial boiler and heat exchanger sales and repair, and offers a full boiler house package.

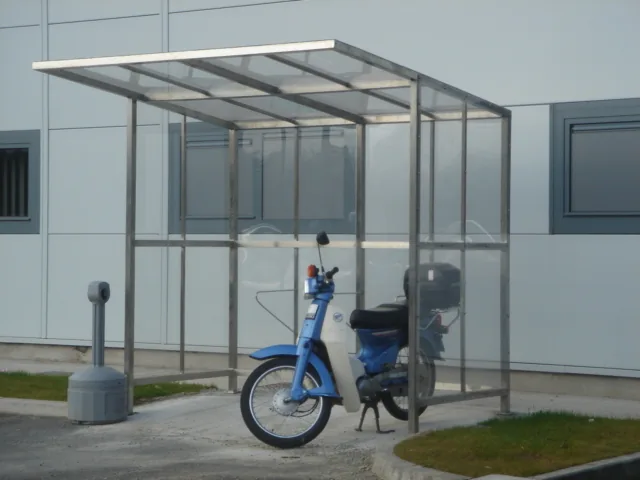

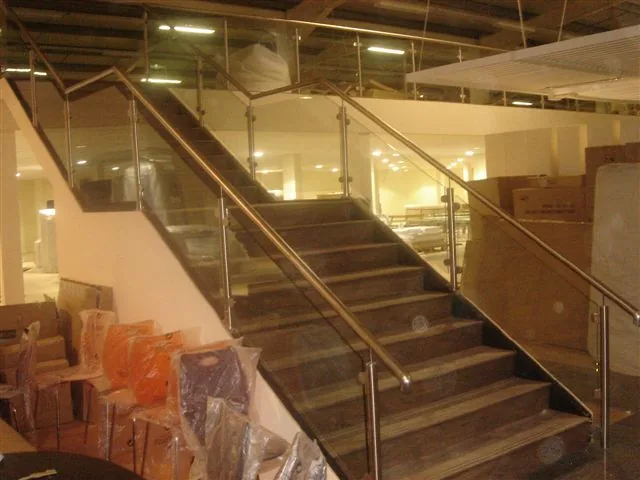

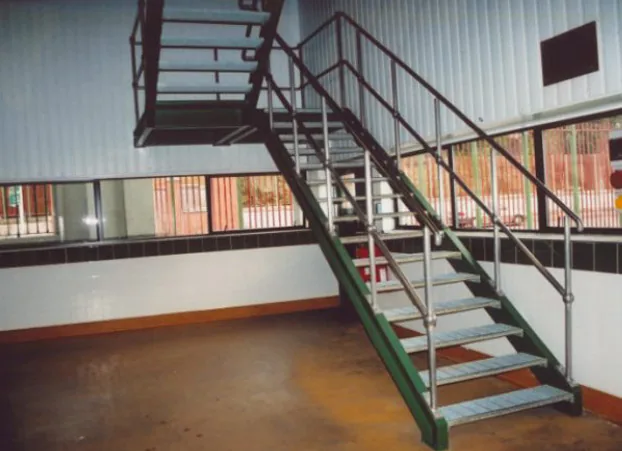

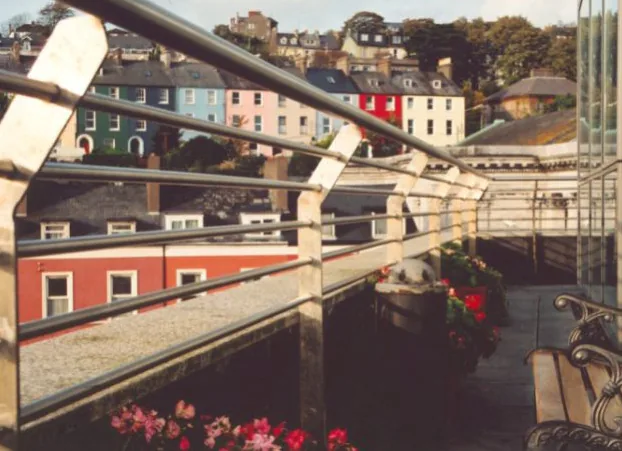

Stainless steel and mild steel fabrication facilities are available in the workshop. Office 021 430 6416, mobile 086 251 3738, fax 021 439 4364.
| Step | What happens |
|---|---|

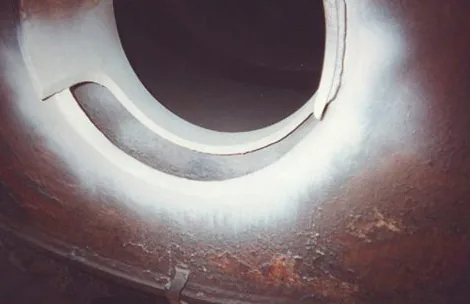

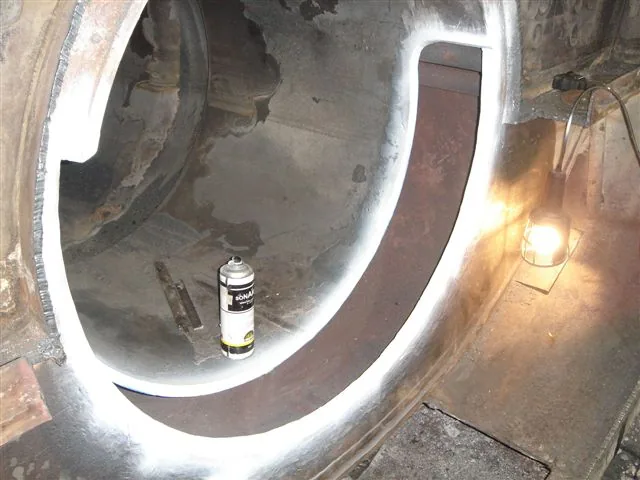

| 1. Inspect | Weld defects are found by ultrasonic testing every 5 years. If defects reach the water side, or cracking shows at the toe of the sealing weld, the old furnace tube end or access door and its weld come out and a new section goes in, to conform with BS 2790. |

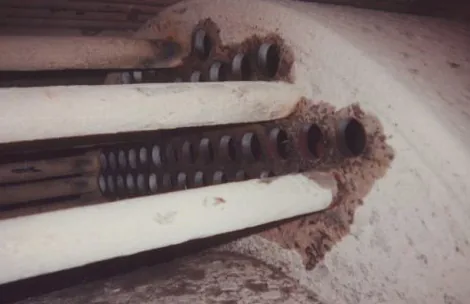

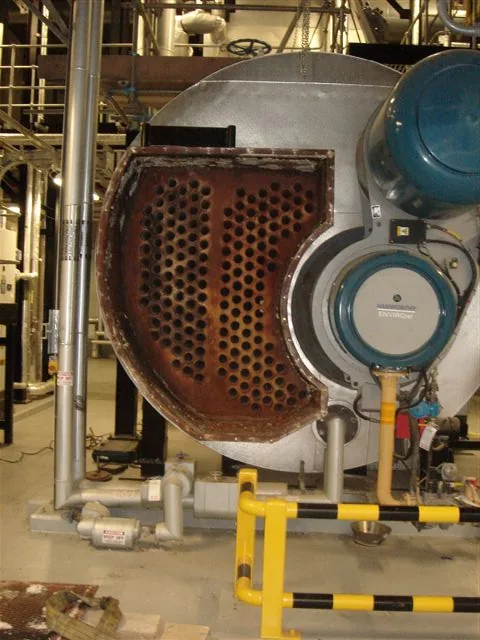

| 2. Remove tubes | With the old tubes out, the water side shows any scale build up, which can lead to overheating of the tubeplate. |

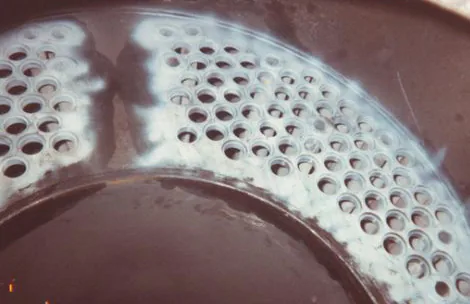

| 3. MPI check | A full MPI check is done on the tubeplate for cracking before new certified tubes are fitted. |

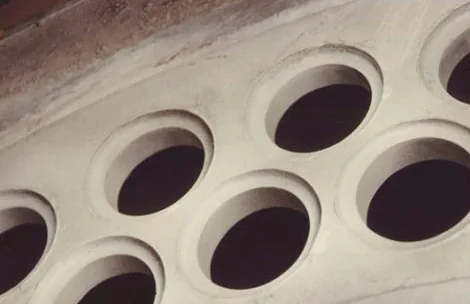

| 4. Weld prep | Projections are removed and a J type weld preparation is machined around the tube ends, to the tube wall thickness plus 3mm, as detailed in BS 2790. |

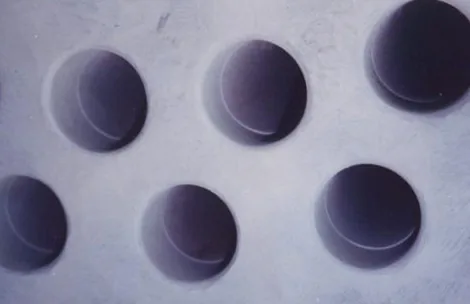

| 5. Weld and finish | Tubes are welded flush in at least 2 runs using the overlay method to cut the risk of porosity, lightly re-expanded, excess weld removed, a small radius machined on the tube bore, then MPI checked. |

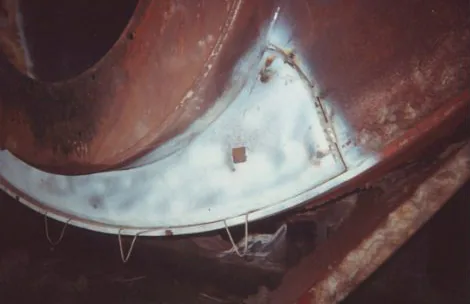

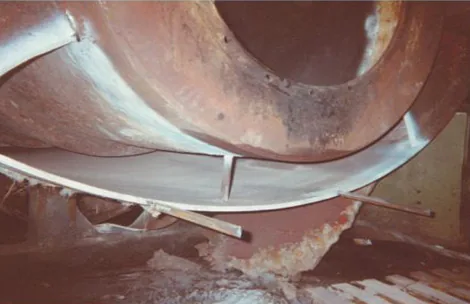

| 6. Tubeplate repair | Where the 5 year NDT inspection finds cracking, a section of the front tubeplate is removed and a replacement section is welded in. |
In 1974. P.J. Guerin Ltd is a family owned and run mechanical engineering business.
Kilcully, Whites Cross, Cork, Ireland, in a 6000 sq ft engineering workshop on the outskirts of Cork city. Office 021 430 6416, mobile 086 251 3738, email info@guerin.ie.

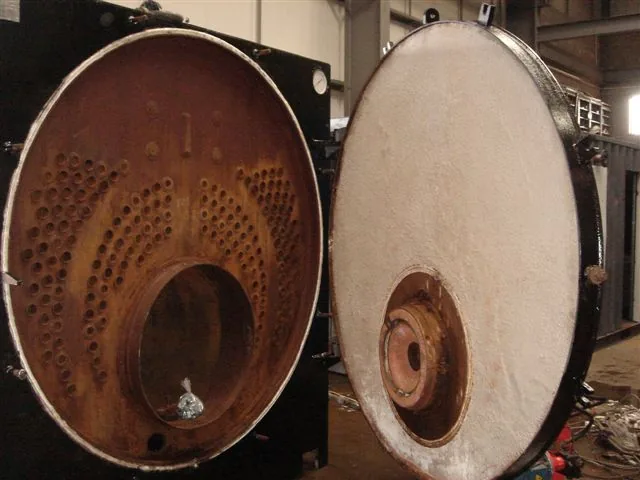

Yes. Steam boiler service for the annual statutory inspection, plus preparation for NDT and ultrasonic examination, including recladding, insulation and refractory works.
Yes, any size of boiler retubed. Tube ends get a J type weld preparation as detailed in BS 2790, with MPI checks before new certified tubes go in and after welding.

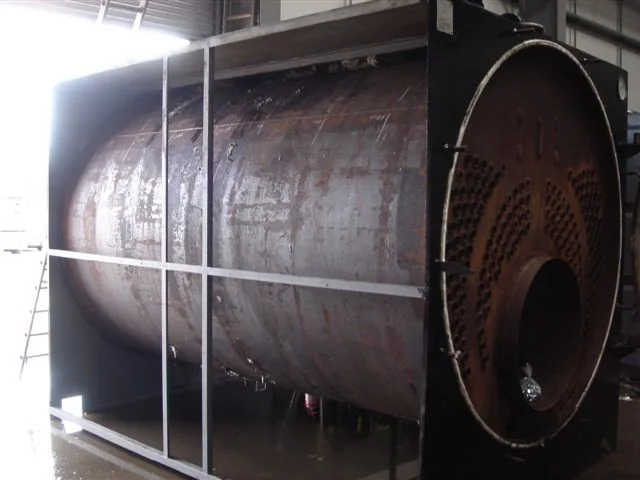

Yes. Please call 021 430 6416 for details of new and used stock of steam boilers.

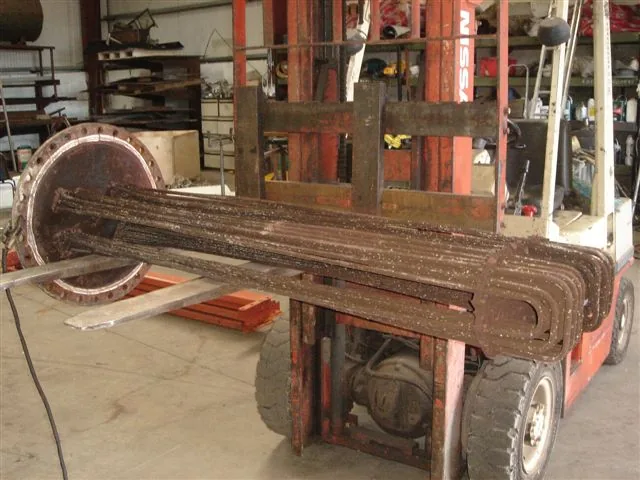

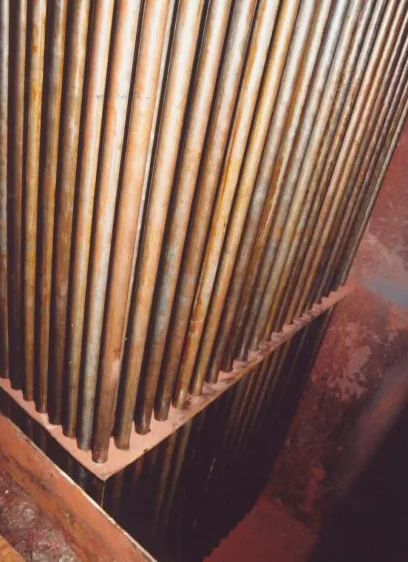

All types: mild steel, stainless steel, copper, Al/brass and more. Finned and plain tubes supplied and fitted, cooling towers retubed at our works, and new heat exchanger bundles fabricated.
Yes. Boiler joints, gaskets and seals, level gauges, Mobrey level controls, Honeywell pressure controls, Grundfos feed pumps, Nabic valves, Suntec oil pumps and more. Please call for prices and availability.
Yes. Valve overhaul on site or at our works, plus combustion testing and burner servicing.
